Bamfield Marine Centre Roof

Architect
DeHoog & Kierulf Architects
General Contractor
Windley Contracting
Structural Engineer
Gerald Epp / Fast + Epp
Our Services
Design Assist, Fabrication and Installation
Area
5,000 sqft
Location
Bamfield, British Columbia, Canada
Completion
2004

Overview

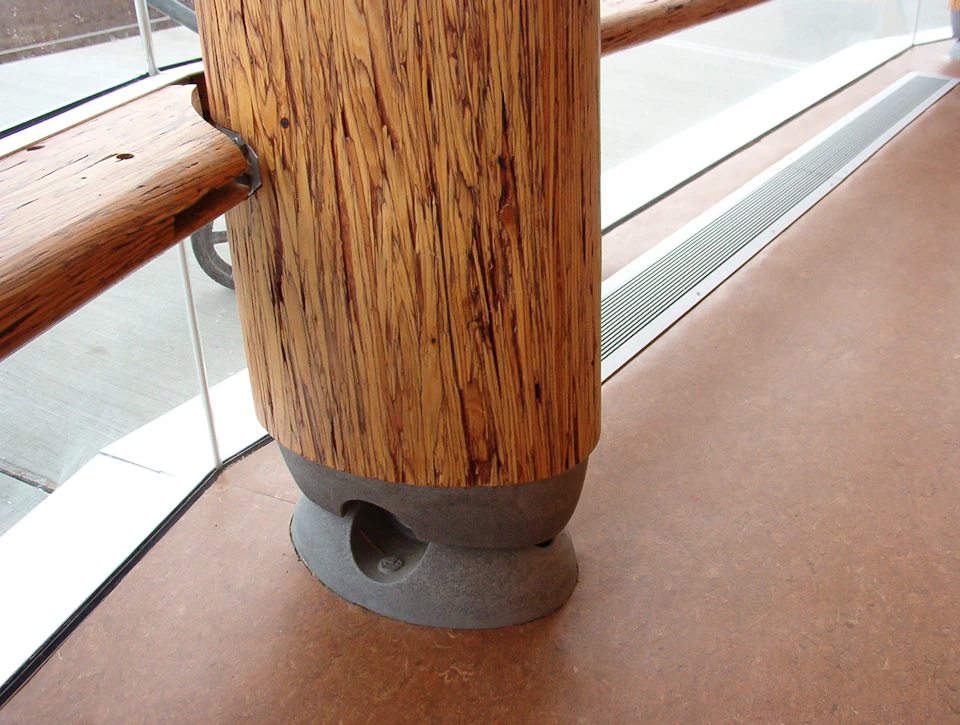

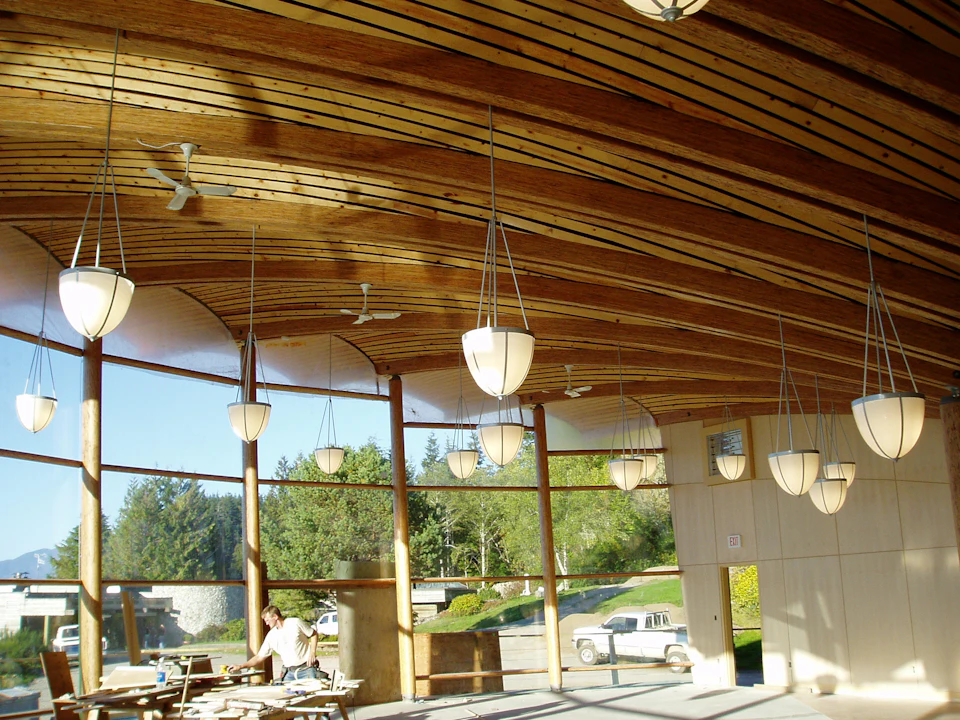

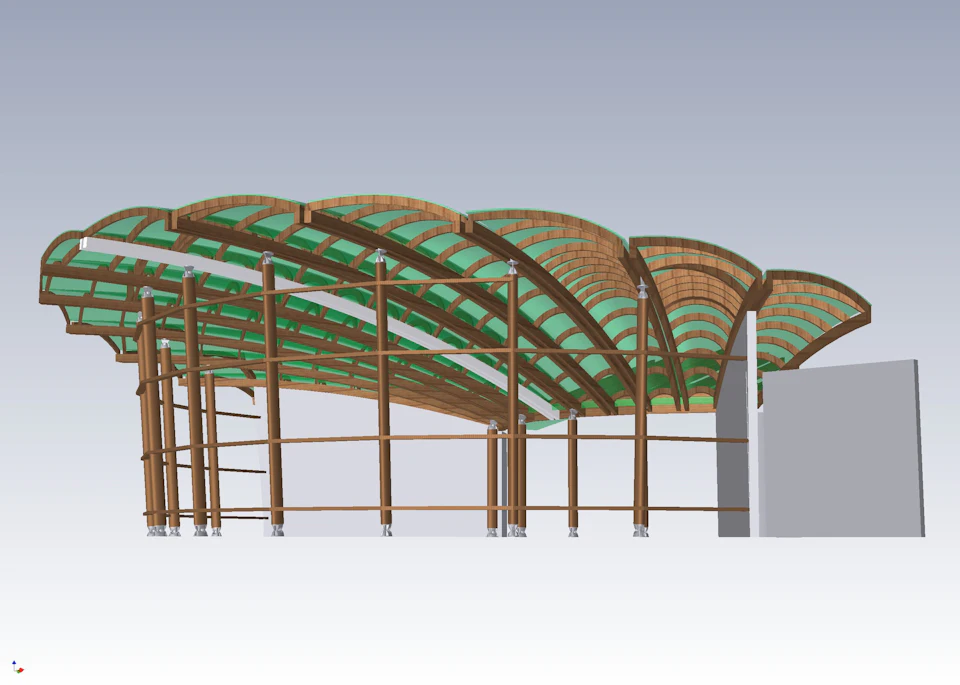

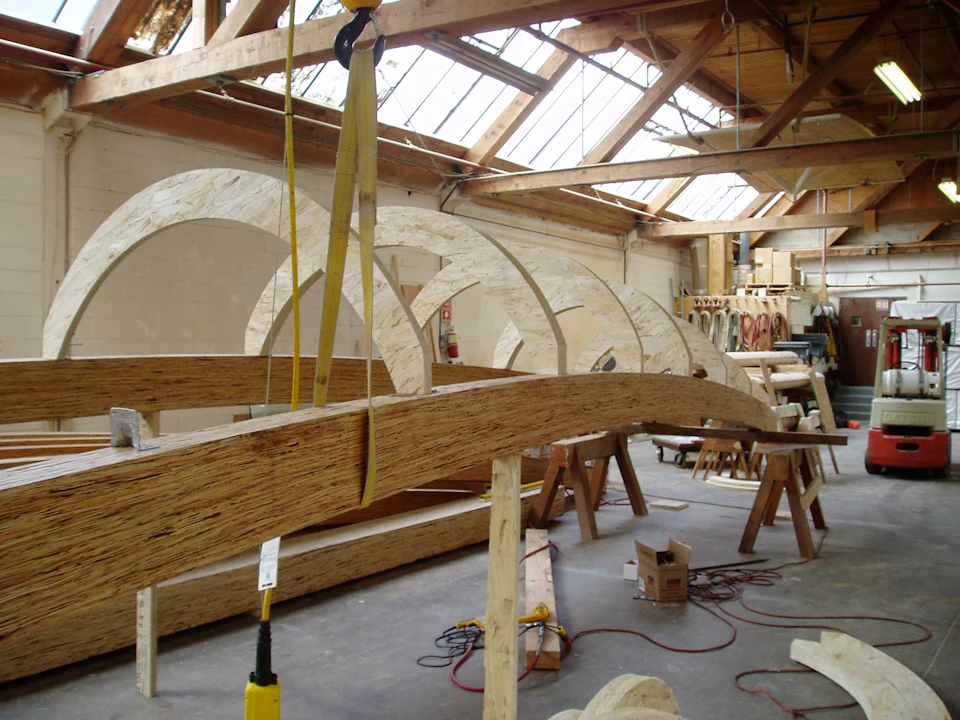

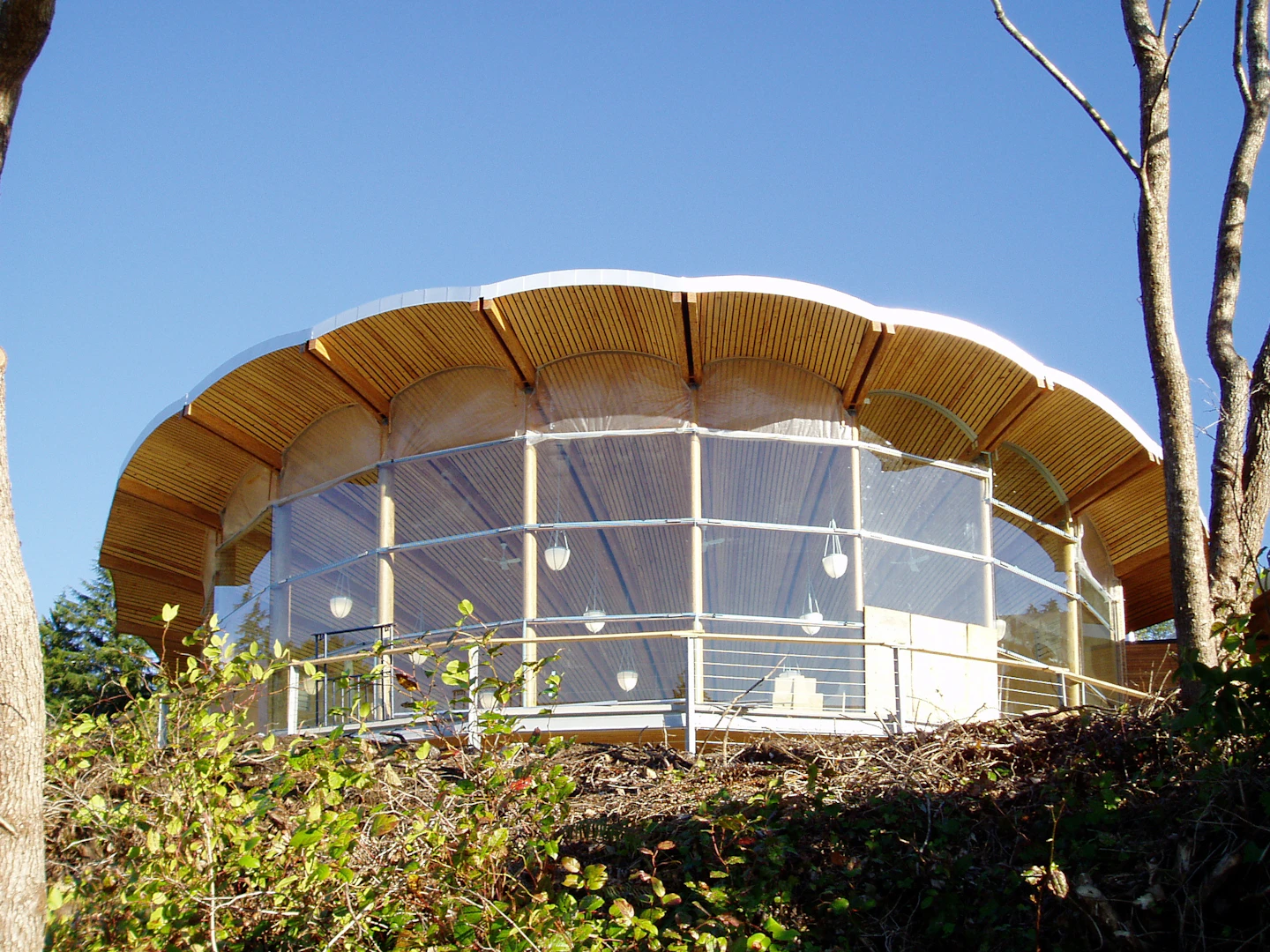

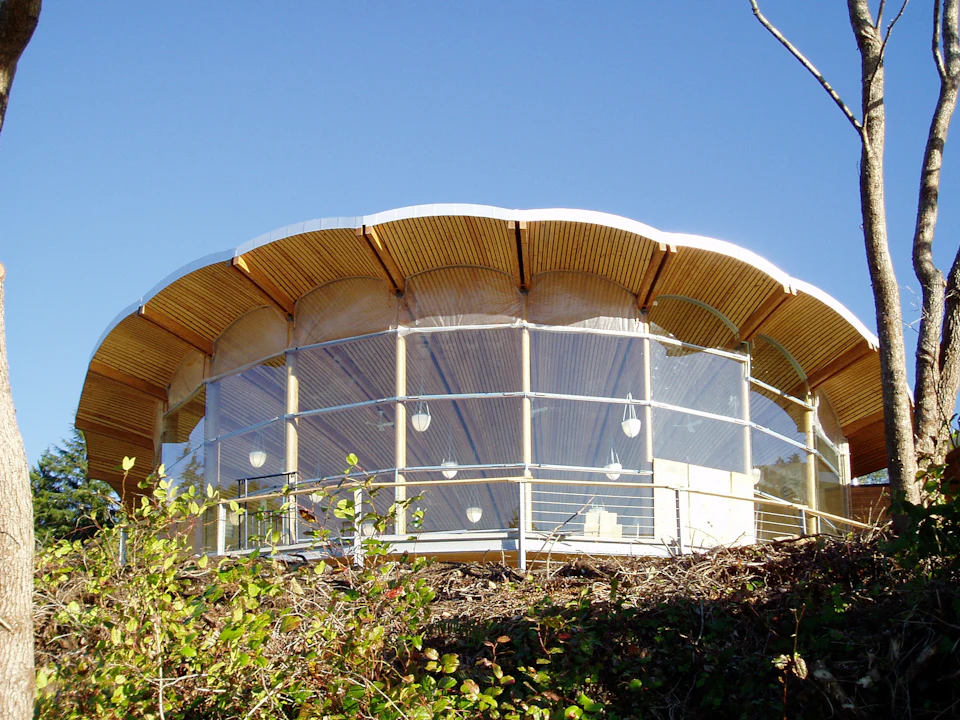

The award-winning scallop-shell roof structure is designed using 12 arched, stressed-skin shells roughly 12 feet wide and up to 50 feet long. The Parallam timber bottom chords of the shell, each laminated into a 110 foot radius, are supported on elliptically shaped façade columns. The 20 foot tall façade complete with shaped timber muntins and custom aluminum castings creates a beautiful glass wall framing a spectacular unobstructed view of the Pacific Ocean.


Awards

2006 BC Engineer Award
CWC, BC Wood Design Awards
